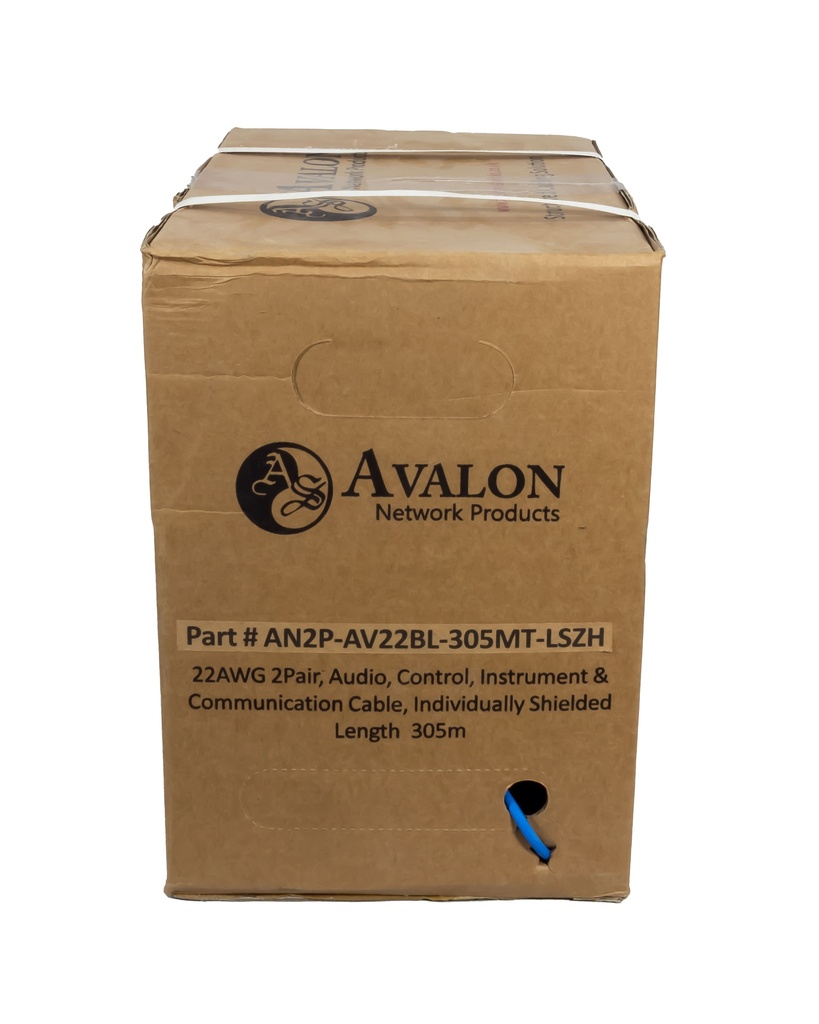

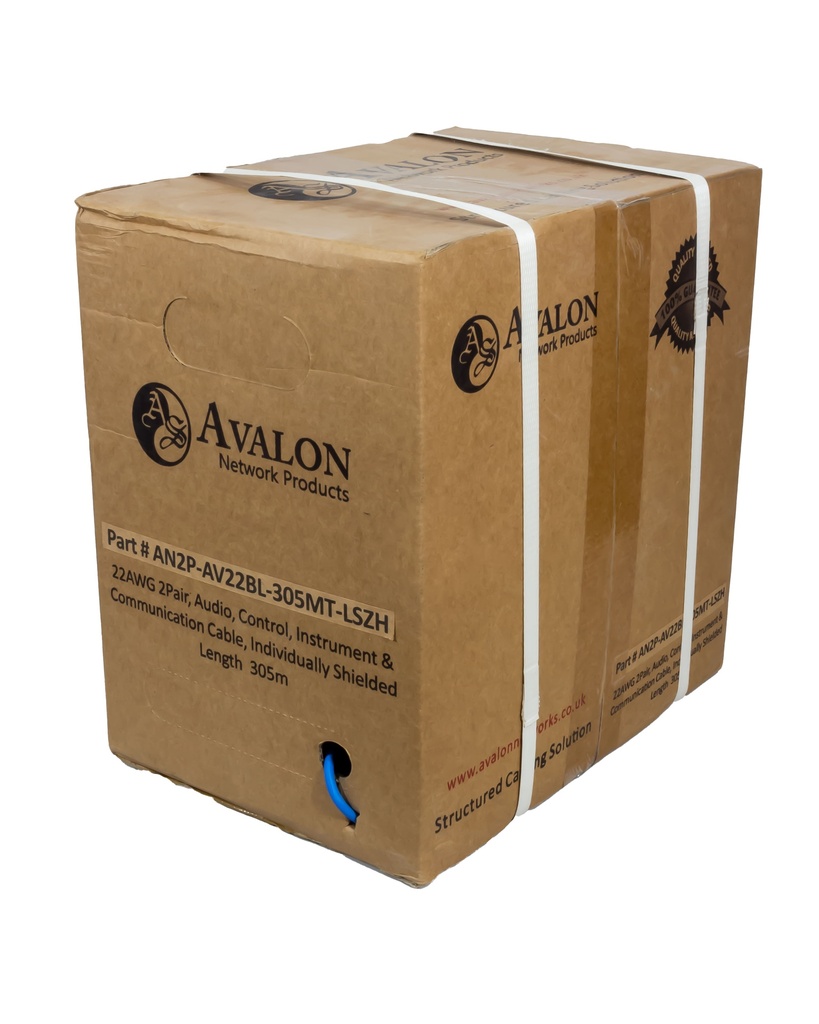

2 Pair, 22 AWG, PO, Individual Foil, LSZH - Audio, Control & Instrument Cable

https://avalonns.odoo.com/web/image/product.template/8433/image_1920?unique=5d69b19

AED 475.00 475.0 AED AED 475.00

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

• The cable consists of 4 stranded tinned copper conductors with a configuration of 7x30 for each pair
• Polypropylene insulation with a nominal diameter of 1.17mm and a wall thickness of 0.009in provides excellent electrical insulation properties
• The pairs are twisted for improved signal integrity
• Each pair is individually foil shielded with 100% coverage using aluminum/polyester tape for effective protection against external interference
• The cable includes a 24 AWG stranded tinned copper drain wire for easy grounding and shielding continuity
• The LSZH (FRNC) jacket has a nominal diameter of 4.55mm and a wall thickness of 0.65mm. It is UV stabilized and offers low smoke and low toxicity in case of fire
• The cable has a Euro class DCA environmental rating, making it suitable for indoor installations
• It is commonly used in instrumentation and computer cable applications for data transmission
• The cable meets various standards and compliances, including CPR Euro class Dca-s2,d1,a1 and CENELEC EN 50290-2-27
• It has good oil resistance and is suitable for indoor installations with a temperature range of -15°C to +80°C

Click on the PDF icon below to download datasheet:
